Description

Manual Nails Gun: Heavy-Duty Steel Concrete Wall Fastening Tool with 5-Gear Power Adjustment & Round Nails

Drilling into concrete usually means an electric hammer drill, an outlet nearby, and a fair amount of setup for what might be a single picture frame or cable clip. This manual nail gun skips all of that — a hand-operated tool that drives steel nails straight into concrete, brick or wood using nothing but manual force and a 4-gear power adjustment system. No compressor, no battery, no cord — just the tool itself, adjusted to the surface it’s working on, from the most powerful setting for concrete and steel down to a gentler one for soft wood. It comes with 20 nails to get started immediately, and a double muffler design cuts down on the sharp noise these tools are usually known for.

Why manual over electric or pneumatic here
An electric or air-powered nail gun needs a power source and, for pneumatic models, a compressor — overkill for a single wall fixture or the occasional home repair. This tool works entirely by hand force, making it genuinely portable for quick jobs where dragging out bigger equipment isn’t worth the trouble.

Four gears, one tool for multiple surfaces
The power adjustment is a genuine range, not a single fixed setting. At full power (no screws removed from the muffler), it can penetrate 4mm steel plate and concrete. Removing one screw steps it down for brick or concrete walls. Two screws removed handles wooden boards. All screws removed brings it to a gentler setting suited to soft wood and more brittle materials. Matching the gear to the surface avoids overdriving a nail through something it shouldn’t.

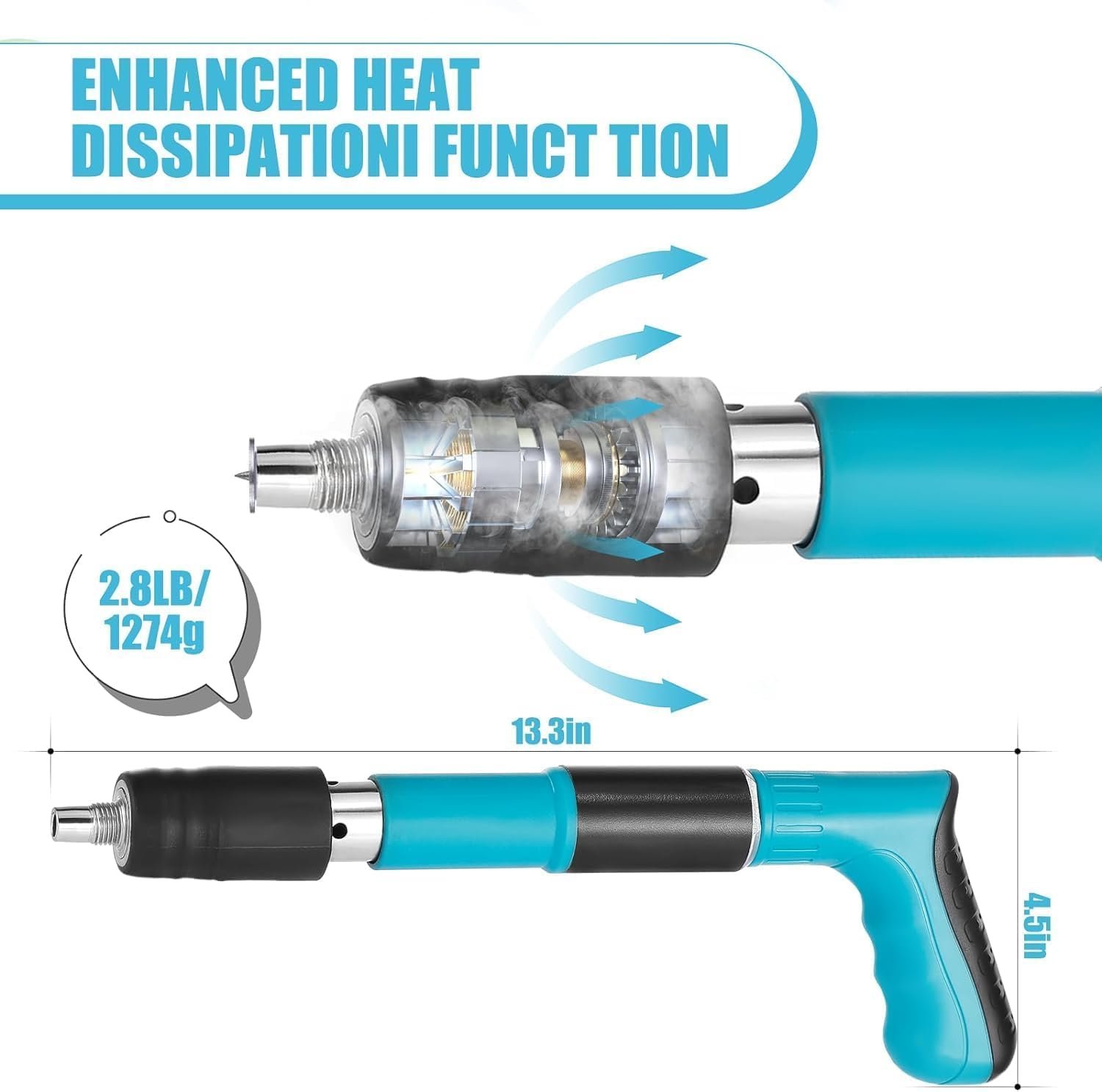

The muffler is doing more than reducing noise
Manual nail guns have a reputation for being loud on impact. The double muffler here is built specifically to cut that down with a thick steel silencer, making it more practical to use indoors or in shared spaces without every hit sounding like a hammer blow.

A genuine safety note, not a formality
This tool fires with real force, and the manufacturer’s own operating guidance is direct about it: never point the muzzle at yourself or anyone else in any position, and store the nails in a cool, dry place away from children, fire, and other heat sources. Wearing protective glasses, gloves, and hearing protection before use isn’t optional caution — it’s how this type of tool is meant to be handled.

PRODUCT SPECIFICATION

Key Features

• 4-gear power adjustment for concrete, brick, wood and soft materials
• Manual operation, no electricity or compressed air needed
• Double muffler design to reduce firing noise
• Iron body construction

Benefits

• No power source or compressor needed for quick fastening jobs
• One tool adjusts across multiple surface types instead of needing separate equipment
• Reduced noise compared to standard impact tools
• Comes ready to use with nails included

Use Cases

• Mounting camera brackets, cable clips or wall fixtures on concrete
• Fastening into brick or concrete walls for household repairs
• Wood board fastening for small carpentry jobs
• General wall fastening where an electric tool isn’t practical

What’s Included

• 1 × Manual Steel Nail Gun

FAQs

• Q1: Does this nail gun require electricity, batteries, or an air compressor?

  No. It is a 100% manual, hand-powered fastening tool. It utilizes mechanical spring impact and specialized self-contained primer-actuated steel nails, requiring no power cords, batteries, or compressed air hoses.

• Q2: Can it penetrate hard concrete slabs and metal sheets?

  Yes. On Gear 1 or Gear 2, the tool delivers high kinetic energy that easily drives 25 mm hardened steel nails into cured concrete walls, reinforced brickwork, and up to 3 mm to 5 mm thick structural steel plates in 0.1 seconds.

• Q3: What should I do if the nail gun does not fire when pressed against the wall?

  Ensure you are holding the tool at a strict 90-degree perpendicular angle against a firm, rigid surface. The built-in safety interlock requires firm, vertical forward pressure to trigger the internal striker. Also, check that the barrel is free of slag residue.

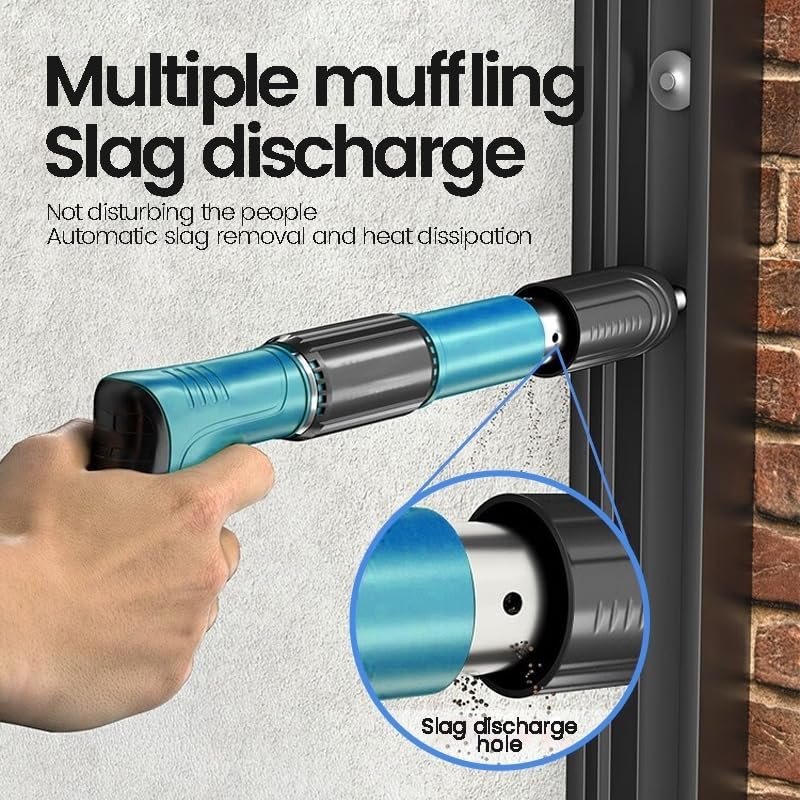

• Q4: How do I clear dust and spent collars after shooting a nail?

  Grip the outer metal silencer sleeve with your hand and push it forward firmly 2 to 3 times. The internal return spring will compress and automatically eject spent plastic collars and concrete dust from the slag ports.

• Q5: Is it safe to use indoors without disturbing family members?

  Yes. Unlike traditional loud powder-actuated industrial tools, this nail gun is engineered with an acoustic double-muffler sleeve and vent holes that significantly suppress noise, making it suitable for indoor apartment and office installations.
